New York–Based • In-House Rebar Detailing
Haqq Rebar provides in-house rebar detailing services based in New York, with over 15 years of dedicated experience in reinforced concrete detailing for commercial and residential projects. We focus on accuracy, constructability, and clear communication—from design review to field installation.
STANDARDS & CODES
REBAR SHOP DRAWINGS

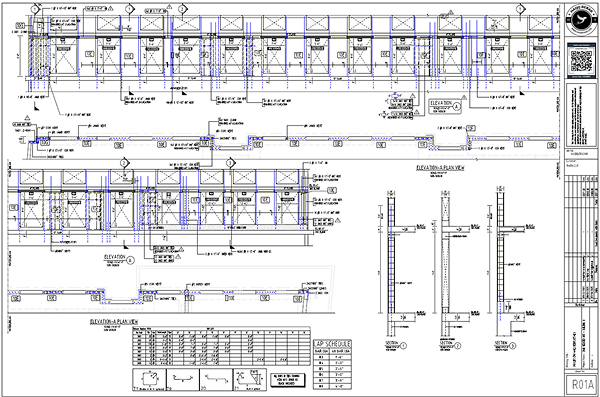

Over the years, we developed a shop drawing format that works for everyone—engineers, fabricators, and field crews. Our drawings are easy to read, reducing installation time and labor costs. Key Features: We work strictly with RFIs — no assumptions Arch D (24” x 36”) sheet size, easy to handle in the field Bending schedule included on every sheet Lap splice tables included on every sheet Full elevations for all walls and beams Complete section details including concrete cover, laps, hooks, and clearances Revision clouds clearly shown on every revision
STRUCTURAL STEEL SHOP DRAWINGS

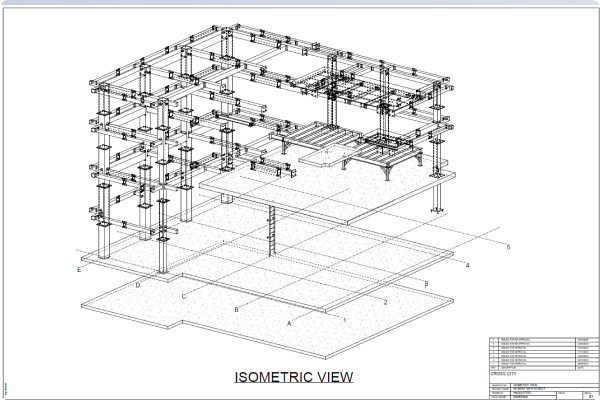

No job s too small or too big for us, we can meet any type of schedule. We create 3D Erection plans with all connection details. Key Features: We work strictly with RFIs — no assumptions Arch D (24” x 36”) sheet size, easy to handle in the field Erection plans, Material list, Fabrication plans, Revision clouds clearly shown on every revision
ADMIN & PROJECT MANAGEMENT

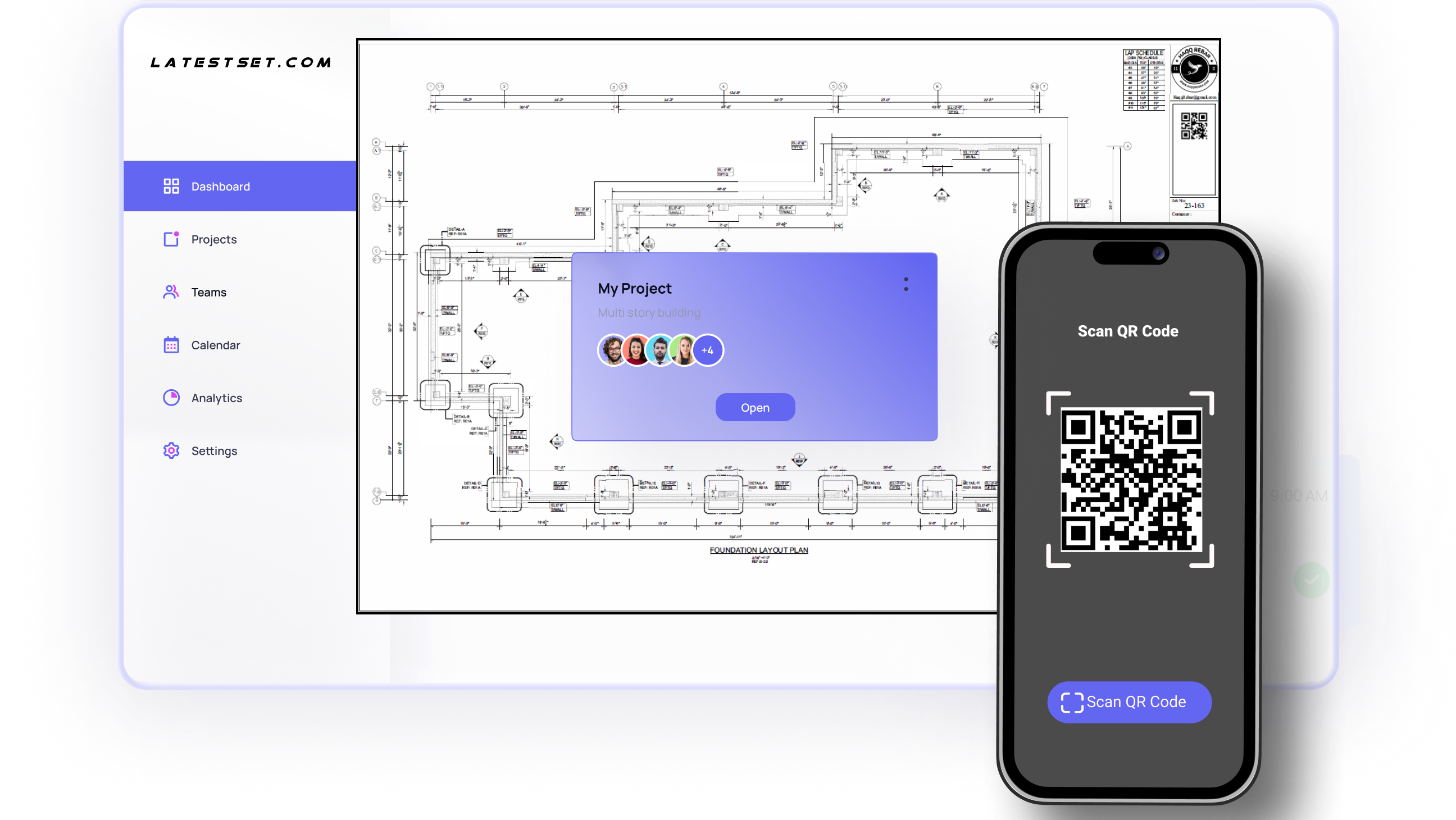

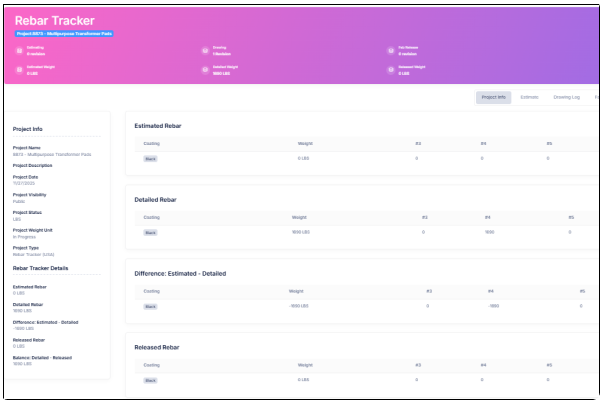

We provide full administrative support to keep your project organized and transparent. LatestSet & Rebar Tracking: Secure project upload and document access through LatestSet.com, with controlled permissions for all project stakeholders, Real-time revision notifications and updates, ensuring engineers, contractors, and fabricators are always working from the latest drawings Integrated Rebar Tracker providing: Drawing and revision logs Rebar weight tracking by release and revision Accurate, auditable change order quantities , Bar Lists: Provided per pour, in any format you need: PDF, ASA, Soule, or custom formats
PROJECT ENGINEER REVIEW
Every project is overseen by an experienced Project Engineer, not just a drafter. Engineer Responsibilities: Review drawings for missing or conflicting information and issue RFIs Verify compliance with applicable codes and standards Check revised drawings against engineer’s marks and updated plans Communicate directly with: Engineer of Record Contractors Fabricators to reduce turnaround time and eliminate costly mistakes
